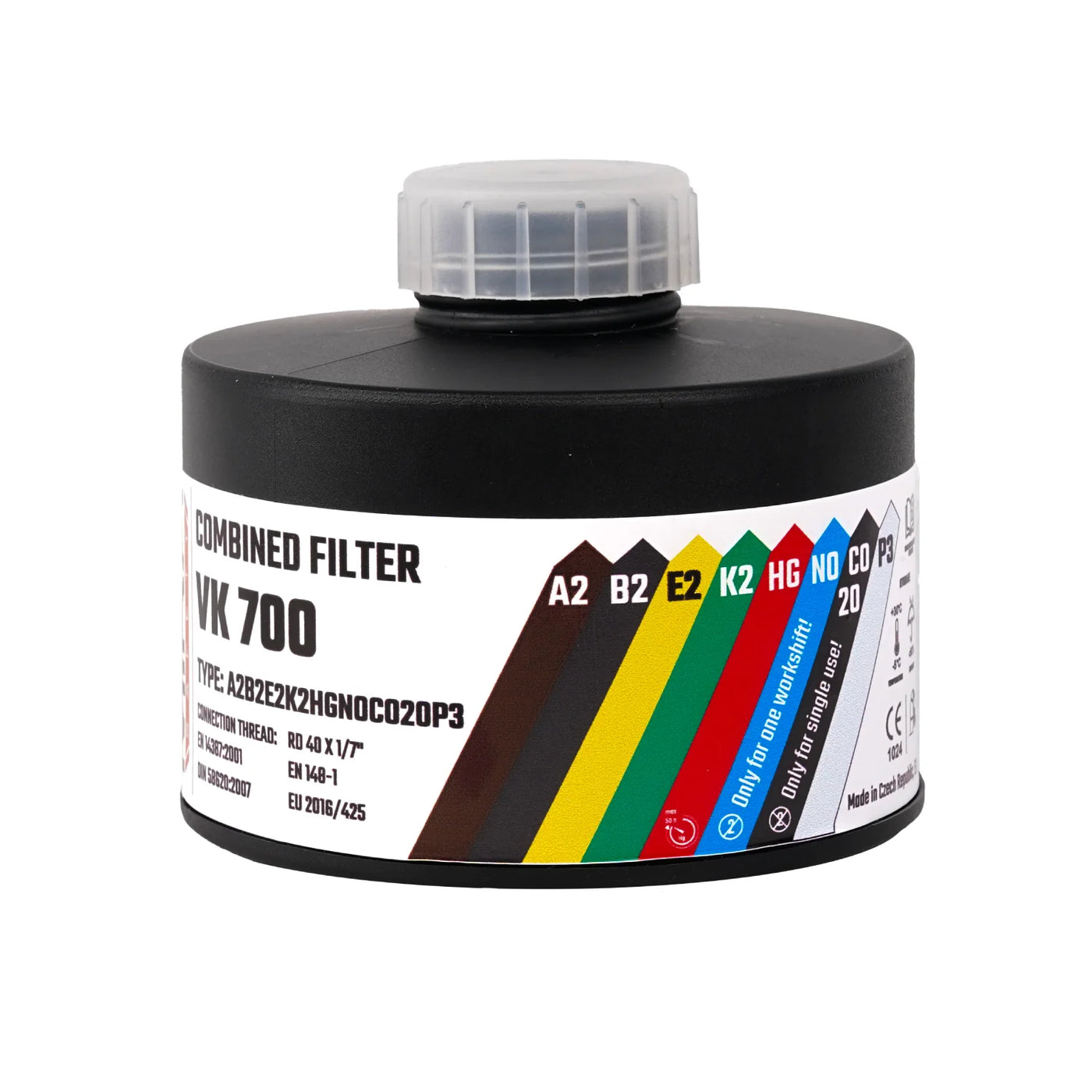

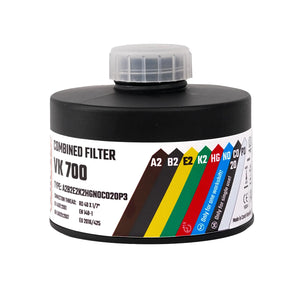

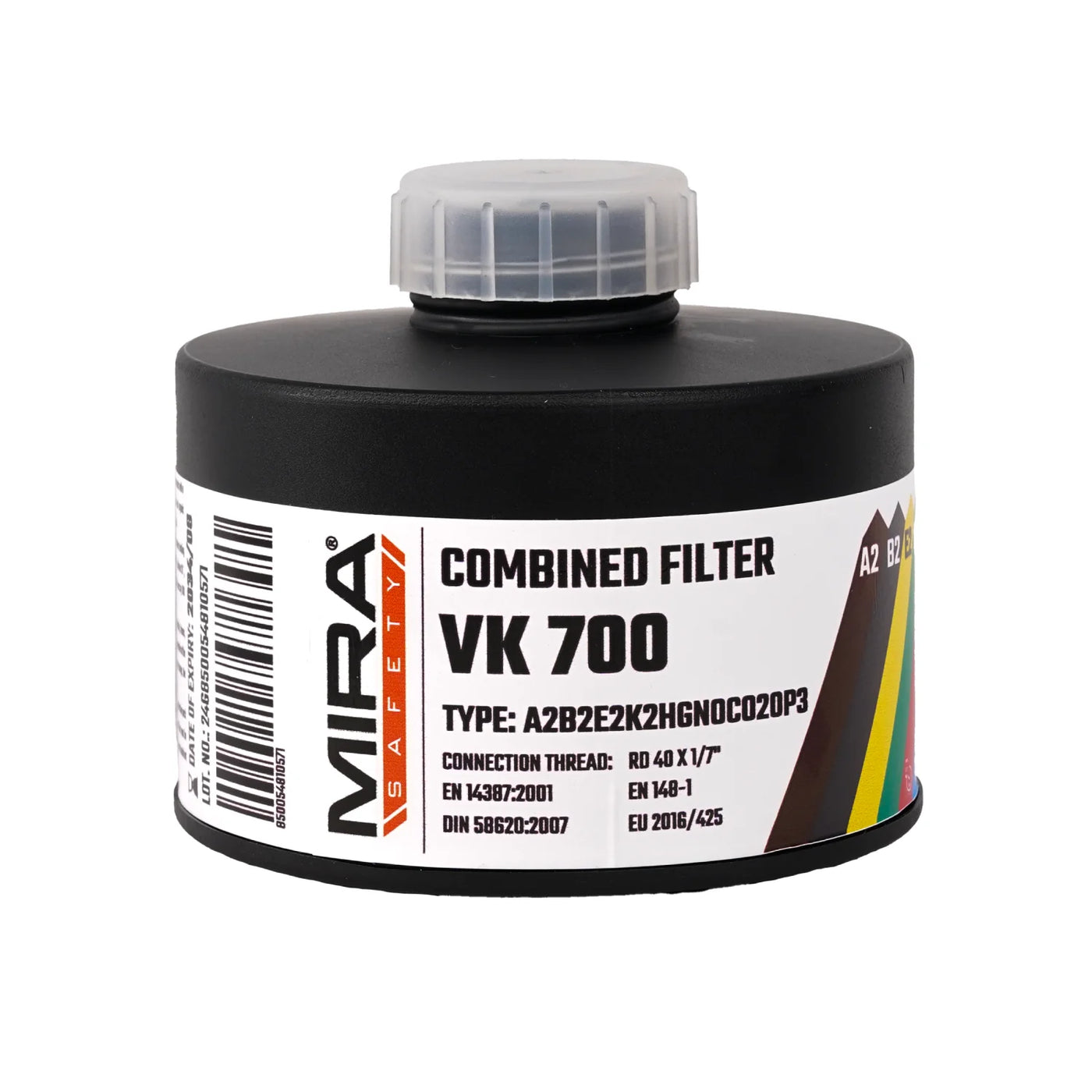

Safety VK-700 Advanced Smoke & Carbon Monoxide Gas Mask Filter

Product Description

The Special Combined Filter Cartridge (VK-700)—your comprehensive respiratory defense solution. The VK-700 Smoke & Carbon Monoxide Gas Mask Filter offers comprehensive protection and effectively filters carbon monoxide and a wide range of contaminants, including:

  • Organic solvents and acid gases
  • Ammonia and mercury vapors
  • Hydroxides and phosphoric acid derivatives
  • Solid and liquid aerosols
  • Radioactive particles and asbestos fibers
  • CBRN agents and tear gas

Key Features of the VK-700 Smoke & Carbon Monoxide Gas Mask Filter:

Certified Quality: Meets EN 14387:2004+A1:2008 standards, ensuring reliable performance in challenging environments.

Low Breathing Resistance: 190 Pa at 30 L/min and 870 Pa at 95 L/min, providing comfortable, unobstructed airflow during extended use.

Versatile Compatibility: Available with EN 148-1 (Rd 40x1/7") or GOST 8762-75 (OZ 40x4mm) thread connections for various full-face gas masks.

Compact and Lightweight: 450 g, 95 mm in height, and 110 mm in diameter for easy integration with existing gear.

Extended Service Life: 10-year shelf life when properly stored between -5°C and +30°C and at humidity levels below 80%.

Superior Filtration Efficiency: Maximum penetration values of just 0.05% for both solid and liquid aerosols.

Enhanced Mercury Vapor Protection: Rated for 100 hours of mercury vapor filtration, surpassing many competitors.

VK-700 Smoke & Carbon Monoxide Filter Technical Data

Technical Data

Specifications

Filter Type

A2B2E2K2HgNOCO20P3

Diameter

110 mm

Height (incl. connection thread)

95 mm

Weight

450g ± 1.5%

Shelf Life

10 years

Breathing Resistance

@ 30 l/min: <190 Pa
@ 95 l/min: <870 Pa

Connection Thread (EN 148-1)

Rd 40×1/7” - Order code 1640

Connection Thread (GOST 876275)

OZ 40×4mm - Order code 2640

Recommended Storage Conditions

Temperature: -5°C to +30°C
Humidity: <80%

Certified According To

EN 14387:2004+A1:2008


VK-700 Smoke & Carbon Monoxide Filter Type and Gas Protection

Type

Test Gas

Dynamic Adsorption Capacity (g)

Breakthrough Concentration

Breakthrough Time (min)

Concentration of Testing Gas

Flow Rate (l/min)

A2

Cyclohexane (C₆H₁₂)

35

0.5%

>40

17.5 mg/l

30

B2

Chlorine (Cl₂)

35

0.5%

>40

15 mg/l

30

E2

Hydrogen Cyanide (HCN)

35

0.5%

>40

7.1 mg/l

30

K2

Ammonia (NH₃)

35

0.5%

>40

13.3 mg/l

30

Hg

Mercury (Hg)

100 h

>170 h

0.1 mg/m³

NO

Nitrogen Oxide (NO)

0.25%

>20

3.1 mg/l

30

NO₂

Nitrogen Dioxide (NO₂)

0.25%

>20

4.8 mg/l

30

CO

Carbon Monoxide (CO)

20

0.5%

>20

20.24 mg/l

30

SX

Phosgene (COCl₂)

20

0.5%

>20

12.144 mg/l

30

Vendor: MIRA Safety
$97.97
